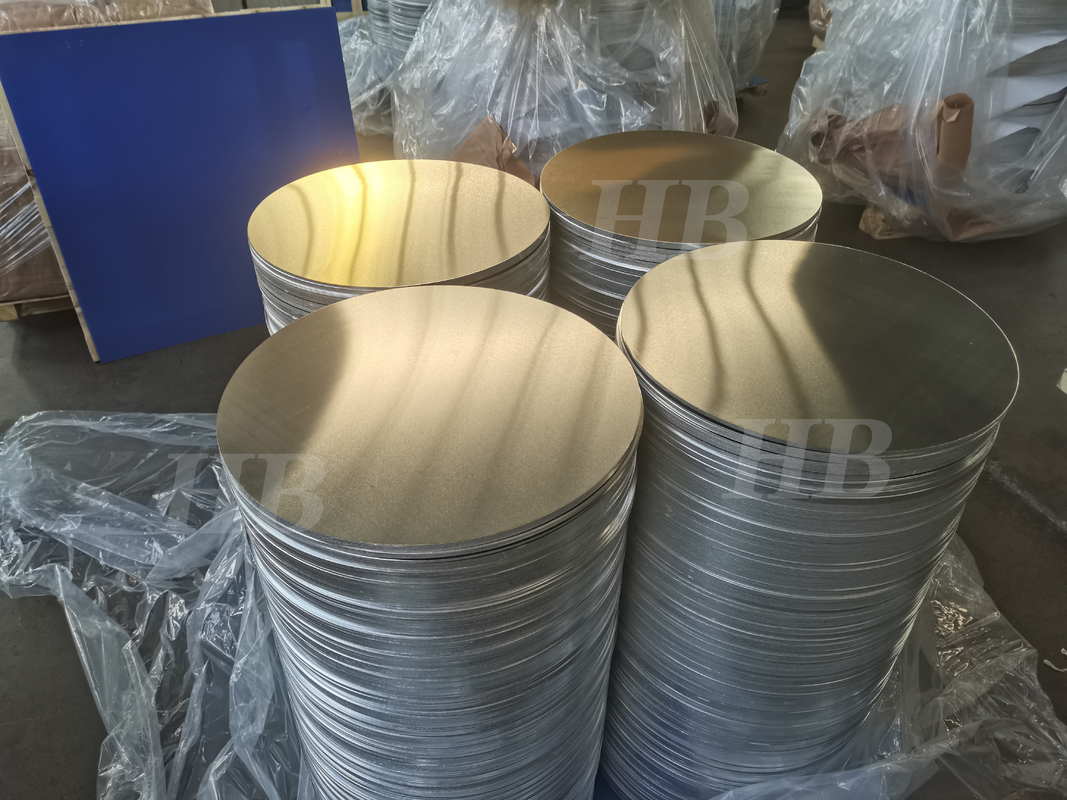

China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels

China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels

  • China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels
  • China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels
  • China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels
  • China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels
China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels
商品の詳細:
起源の場所: 中国
ブランド名: Hobe
証明: ISO/ROHS/SGS
モデル番号: 1050 1060 1070 1100 3003
お支払配送条件:
最小注文数量: 交渉
価格: Negotiation
パッケージの詳細: パレットか木の場合
受渡し時間: 15-35days
支払条件: D/A、D/P、L/C、T/T、ウェスタン・ユニオン、MoneyGram
供給の能力: 1ヶ月あたりの2000ton
連絡先
詳細製品概要
製品: 調理器具アルミニウム シートの円 合金: 1100
サイズ: 2.8X320MM 気性: O H22および等
技術: 直接鋳造 パッケージ: 輸出木の場合


China 1050 Dc Grade Aluminium Circle Aluminum Round Plate For Cookware/Turkey Barrels



China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels 0

Quick Detal:



Made available by us is a vast assortment of Pure Grade Aluminium Circle. The range offered by us is manufactured keeping in mind the exact requirements of customers. Excellent quality material is used in the manufacturing process so that our products are in compliance with international quality standards.

Specifications:
Sizes: 8 - 36" with 20, 19, 18, 16, 14, 12 & 10 Gauge
We offer two types of quality i.e Spinning Quality & Pressing Quality



Description:



We are providing an extensive range of Aluminum Circles For Utensils to our customers. Our products are developed by professionals utilizing the advanced techniques and optimum quality material which is acquired from reliable merchants of industry. Due to high demand, our products are available in diverse configurations. We have wide range to offer in terms of Gauge and Sizes to the clients. These aluminum circles offered by us are made utilizing pure EC grade ingot of Hindalco. This range is useful for Deep Draw, Anodizing & Hard Anodizing. We also offer soft, Quarter hard, Half-hard, Full hard Non anodize and allied nature.



Features:


Longer service life
Sturdy design
Easy to use



The properties of aluminum circle for pots, cookware, nonstick aluminium circle (or shaped blanks) make them ideal for use in a number of markets including the cookware, automotive and lighting industries etc
1. Low anisotropy, which facilitates deep drawing
2. Strong mechanical properties
3. High and homogeneous heat diffusion
4. Ability to be enameled, covered by PTFE (or others), anodized
5. Good reflectivity
6. High strength-to-weight ratio
7. Durability and resistance to corrosion



Aluminum circles is widely used in electronics, comestic, medicine, auto parts, home appliances, machine manfacturing, moulding, building and printing, especially for cookware, like non-stick pan, pressure cooker, and hardware, like lampshade, jacketing shall. Aluminum circle disc is the most widely used deep drawing products of aluminum alloy strip.



Qualify Control:



The central laboratory is equipped with the device which made by the world's top manufacturer.
They can carry out the test such as :the product composition analysis, mechanical performance analysis, metallographic analysis, environmental simulation, heat test, testing analysis, corrosion analysis, project.



Our company had built the quality supervision department and Aluminum lab to control the quality of production which will export the other countries.



Chemical composition



  Si Fe Cu Mn Mg Cr Zn Ti Al
1060 0.250 0.350 0.050 0.030 0.030.- - 0.050 0.030 99.6
1070 0.200 0.250 0.040 0.030 0.030 - 0.040 0.030 99.7
1100 Si+Fe:0.95 0.05-0.2 0.050 - - 0.100 - 99.0
3003 0.600 0.700 0.05-0.20 1.0-1.5 - - 0.100 - remains
3105 0.600 0.700 0.300 0.30-0.8 0.20-0.8 0.200 0.400 0.100 remains
5052 0.250 0.400 0.100 0.100 2.2-2.8 0.15-0.35 0.100 - remains
5154 0.250 0.400 0.100 0.100 3.1-3.9 0.15-0.35 0.200 0.200 remains
5754 0.400 0.400 0.100 0.500 2.6-3.6 0.300 0.200 0.150 remains
5182 0.200 0.350 0.150 0.20-0.50 4.0-5.0 0.100 0.250 0.100 remains
6061 0.3-0.7 0.500 0.100 0.030 0.35-0.8 0.030 0.100 - remains
8011 0.5-0.9 0.6-1.0 0.100 0.200 0.050 0.050 0.100 0.080 remains
8079 0.200 0.300 1.0-1.6 0.100 0.6-1.3 0.100 0.250 0.100 remains



Product Features of cookware Aluminium circle:

a. Wide range of selection on circles' size including customized shape and size;

b. Excellent deep drawing and spinning quality;

c. RoHS and REACH compliance.





Manufacturing of cookware Aluminium circle:



Decoiler → Accumulator→Tension Leveller →Acid&Alkali Cleaner → Rinse → Conversion Treatment → Priming coater →Infrared Curing Oven →Main coater → Floatation Curing Oven →Strippable Film Applicator → Exit Accumulator →Recoiler →Punch - Aluminium Circles



Specification



pecification aluminium sheet circle
Alloy: 1050, 1060,1070, 1100, 1200,3003 ,6061 etc.
Temper: TO, H12, H22, H14, H24, H26, H18 etc.
Thickness: 0.2-200mm
Width: Up to 1800mm
Length: Up to 6000mm
Surface treatment: mill finished, anodized, embossed, PVC coated
Feature Price is much more competitive than that of other series.
Satisfy regular industrial process of stamping, drawing with good elongation, tensile strength and high formability.
Great plasticity, corrosion resistance, electrical conductiviy and termal conductivity.
Easy to be welded.
Easy to be pressure processed, extended and bent.
Application Sign board, Advertising board, Building decoration, Car body, Cooking utensil, Lamp holder, Fan leaf, Electrical part, Chemical instrument, Machined part, Deep-drawn or spinned part, Welded part, Heat exchanger, Clock surface, Decotation, Reflective instrument etc.
Alloy Chemical Component %≤
Si Fe Cu Mn Mg Cr Ni Zn Ti others Al
single total
1050 0.25 0.4 0.05 0.05 0.05     0.05 0.03 0.03   99.50
1060 0.25 0.35 0.05 0.03 0.03     0.05 0.03 0.03   99.60
1100 0.95 0.05-0.2 0.05       0.1   0.05 0.15 99.00
1200 1.00 0.05 0.05       0.1 0.05 0.05 0.15 99.00





Application of cookware Aluminium circle:

China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels 1China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels 2

Stock pots Fry pans Pressure cookware

Bread makers

Tea kettles Hollowware

Lampshade

Kitchen disc Cooking pan









Competitive Advantage:

1. Factory direct sells, with competitive price.

2. Quick delivery time, according to the clinet's demand

3. Expert in producing cold rolled and hot rolled aluminium circles

4. Can supply small trial orders

5. Many years producing technology to supply high quality products

6. Quick reply on the customer's questions

China 1050 dc grade Aluminium Circle aluminum round plate For Cookware/Turkey Barrels 3
